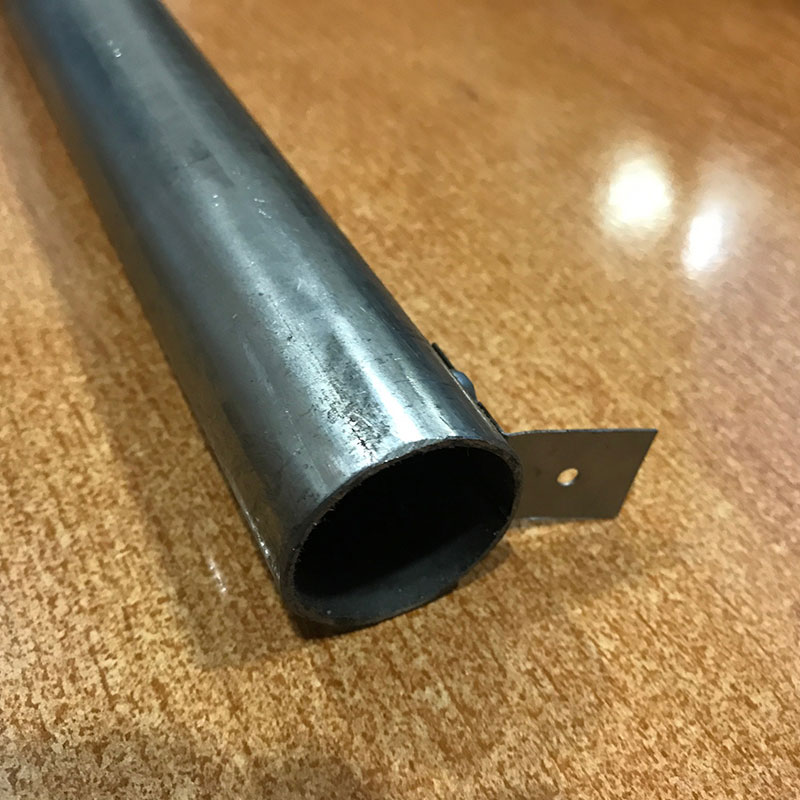

RSF Secondary Air Tube – Opel (FR-7.8.P)

OEM RSF replacement secondary air tube for RSF Opel series of wood burning fireplaces. Secondary air tubes serve the purpose of adding preheated air into the upper portion of the firebox. This allows for optimal burning efficiency.

How do I know when my secondary air tubes need replacing?

Secondary air tubes should be cleaned regularly, but with age air tubes begin to warp, crack, and deteriorate. Once this happens it obstructs airflow and leads to lower efficiency and heat output. They should be replaced if any damage is noticed.

How to replace Opel secondary air tubes?

To remove your old air tubes take a screwdriver (any type is fine except flat head) and place it in one of the air tube holes. Then with a mallet gently (or not so gently depending on how stubborn it is) hit the base of the screwdriver toward the left hand side of your fireplace. Once the right end comes loose you can pull it down and out.

To install your new air tube you’ll basically do the opposite. Put the left end into place first, then you should be able to shove it to the right into place. If necessary use the mallet and screwdriver trick (to the right this time) to make sure it is firmly in place.

RSF Part Number: FR-7.8.P (replaces old part numbers 7.8.P & AA1137)

Part Description: RSF Opel Secondary Air Tube.

Applicable Wood Fireplace Models:

• RSF Opel
• RSF Opel 2000
• RSF Opel AP

This part may fit other RSF products as well. Please consult your owner’s manual to confirm.

WoodChimney.com stocks and sells other RSF replacement parts.  Please contact us if your part is not listed on our website.

This genuine Opel Secondary Air Tube is in stock and ready to ship.
