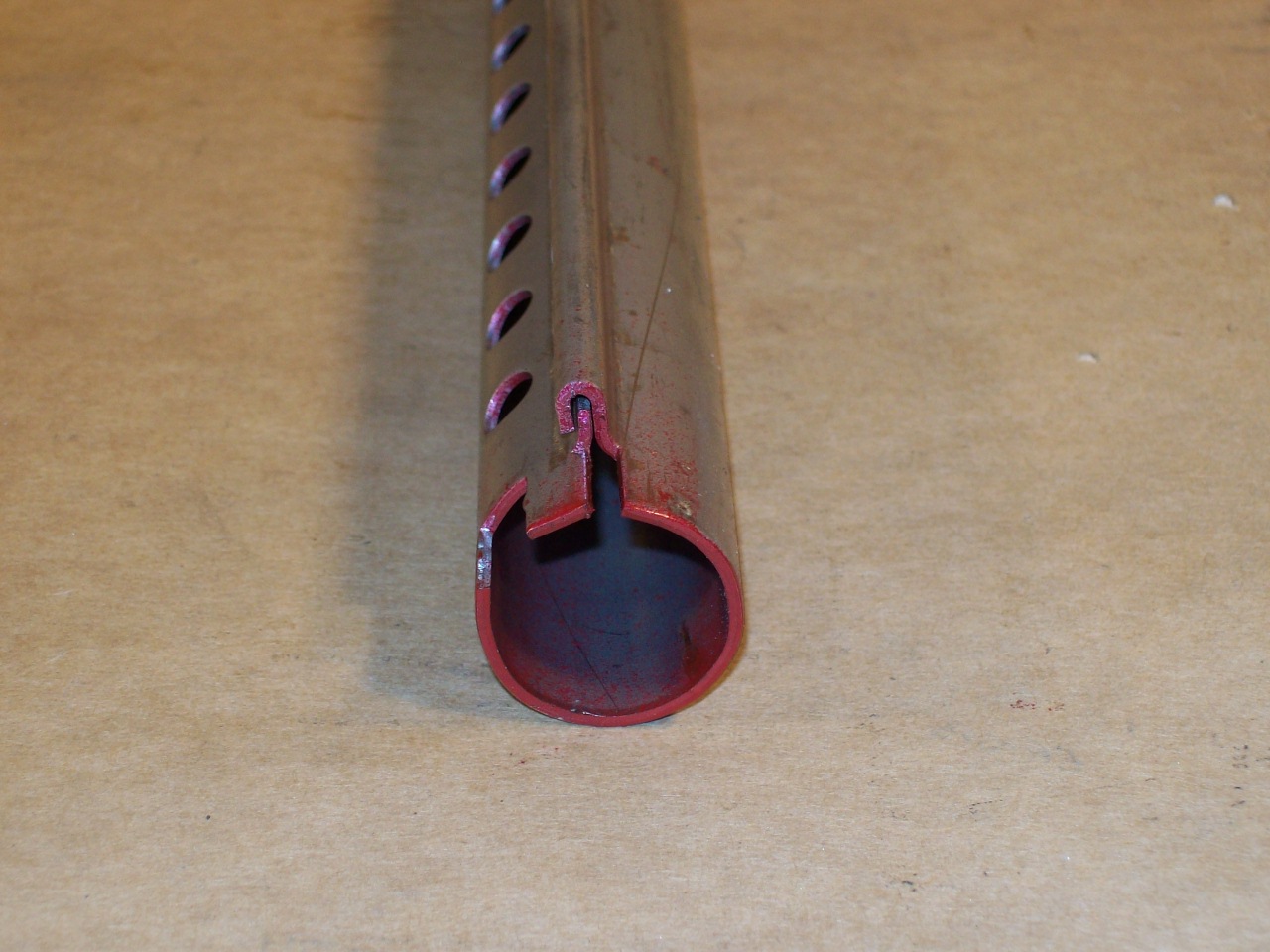

These are OEM replacement Extended Front Secondary Air Tube for the Enviro 1200 and 1700 Series Wood Stoves & Inserts. This part will ship new in the manufacturers packaging.
Note: The ’50-2601′ is a new longer tube in case your side air channel is a little warped, and your front air tube falls out sometimes.
What are Secondary Air Tubes?
Secondary air tubes serve the purpose of adding preheated air into the upper portion of the firebox. This allows for optimal burning efficiency.
How do I know when my secondary air tubes need replacing?
Secondary air tubes should be cleaned regularly, but with age air tubes begin to warp, crack, and deteriorate. Once this happens it obstructs airflow and leads to lower efficiency and heat output. They should be replaced if any damage is noticed.
How to replace secondary air tubes?
To remove your old air tubes take a screwdriver (any type is fine except flat head) and place it in one of the air tube holes. Then with a mallet gently (or not so gently depending on how stubborn it is) hit the base of the screwdriver toward the left hand side of your fireplace. Once the right end comes loose you can pull it down and out.
To install your new air tube you’ll basically do the opposite. Put the left end into place first, then you should be able to shove it to the right into place. If necessary use the mallet and screwdriver trick (to the right this time) to make sure it is firmly in place.
OEM Part Numbers
- Enviro Kodiak 1200 / 1700 Wood Stove
- Enviro Kodiak 1200 / 1700 Wood Insert
- Enviro Boston 1200 / 1700 Wood Stove
- Enviro Boston 1200 / 1700 Wood Insert
- Enviro Cabello 1200 / 1700 Wood Insert
- Enviro Venice 1200 / 1700 Wood Insert
This genuine Enviro Extended Front Air Tube is in stock ready to ship
